Weight | 1 lbs |
---|---|
Dimensions | 0.8 × 17 × 11 in |
Plan Format | Digitally Sealed E-Permit File, Raised Sealed Hardcopy |
Storefront | Structall, Engineering Express |
Plan Designer | Engineering Express |
Plan Type | Manufacturer Plans, Performance Evaluation Report |
Brand | Structall Building Systems, Inc. |
Material | Aluminum, EPS |

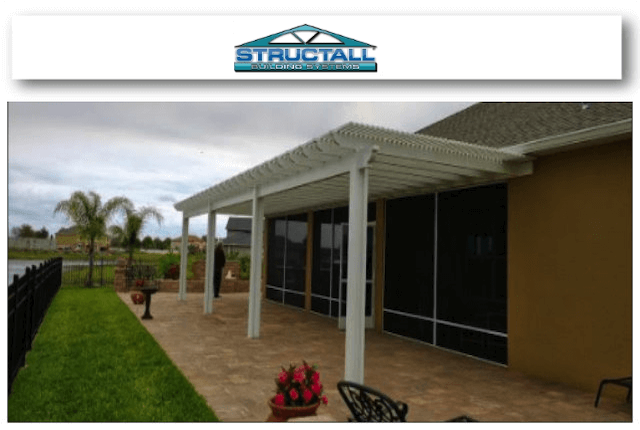

Structall: Trellis – Mechanically Fastened Lattice Performance Evaluation
Structall: Trellis – Mechanically Fastened Lattice Performance Evaluation
$150.00 – $200.00 or ( 15 Tokens - 20 Tokens )
This certification applies to Structall: Trellis – Mechanically Fastened Lattice Performance Evaluation Report. It contains numerous dimensions, wind speed/pressure, and size options for many typical Structall applications. It is sold as an engineered sealed document and meets the requirements of the applicable building code for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit. (Previous # 20-26255)
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.
For site-specific projects, click here to request a quote.
Contact your Structall representative for more information on this product and the family of Structall systems and components.
Sample
Read Disclaimer & Important Information for UseClick here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Sample
