Canopy Solutions Cantilever Canopy v2
logo
Cantilever Canopy Calculator (ASD)
ASCE 7      Version v2      4/16/20
Loading
ASCE:
IBC 03/06/09 = ASCE 7-05
IBC 12/15 = ASCE 7-10
IBC 18 = ASCE 7-16
V: mph
Vult: mph
Exposure:
Risk Cat.:
Live Load: 20 psf
Dead Load: 2 psf
Ground Snow Load: psf

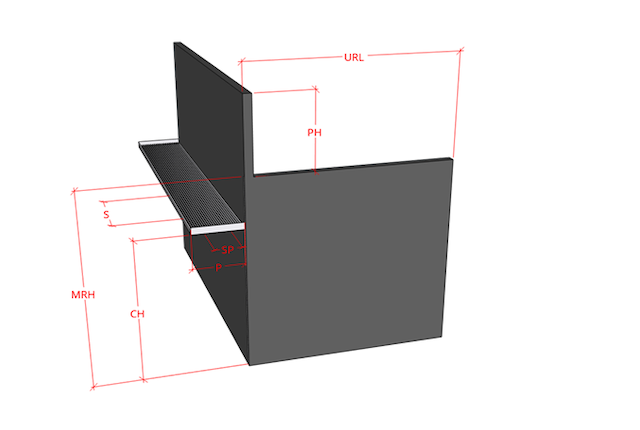

Superstructure
MRH:
Mean Roof Height: 60' Max. for Provisions for Attached Canopies
ft
URL:
Upper Roof Length:
ft
PH:
Parapet Height:
ft
Canopy
P:
Projection:
ft
CH:
Canopy Height:
ft
S:
Beam Spacing:
ft
SP:
Soffit Purlin Spacing:
ft
ASD Load Combinations
Effective Combinations:
Gravity:
Uplift:
1.
2.
3.
4.
5.
6a.
6b.
7.
8.
Legend:
D = Dead Load Lr = Roof Live Load S = Snow Load W = Wind Load
Decking Capacity

INVALID WITHOUT
ENGINEER SEAL
Cantilever Beam Capacity

INVALID WITHOUT
ENGINEER SEAL
Soffit Purlin Capacity

INVALID WITHOUT
ENGINEER SEAL
ASD Reactions to Host Structure at Beam

Gravity: kips
Uplift: kips
Moment: kip-ft

TO SAVE YOUR WORK:

1) Click the red “SAVE, SHARE & SYNC” button above.

2) Enter a key phrase or word in the “secret key” field and click the blue “Connect” button. You are connected if the white cloud turns green.

3) Return to your project by clicking the red “SAVE, SHARE & SYNC” Sync button, entering your secret key, and clicking the blue “Connect” button.

Share your project by clicking “Share the Link” after connecting and copying the link to send to coworkers, colleagues, and clients!

  Information
  60' max. MRH as there is lack of provisions in ASCE 7-16 for attached canopies
  Rain Load (R) is ignored (will update eventually)
  Canopy height (wind pressure/statics) and arm height (statics) assumed to act through centerlines of gutter for simplicity
  Load Combo 6a reserved as TX canopy engineers not considering roof maintenance during wind design event

  Load Combinations (Moment)   Grav Control Uplift Control       Loads
  1 D         D
  2 D         S
  3         Lr
  4         Wp
  5         Wn
  6a       R 0
  6b
  7
  8 0.6D
        Max:

  Load Combinations (Deflection)   Grav Control Uplift Control       Loads
  1 D         D
  2 D         S
  3         Lr
  4         Wp
  5         Wn
  6a       R 0
  6b
  7
  8 0.6D
        Max:



  Decking Capacity
  Decking     Fb(l) Unity(m) Unity(def)
  3"x6"x0.065" 6063-T6 Pan
  3"x6"x0.079" 6063-T6 Pan
  3"x6"x0.094" 6063-T6 Pan
  2"x8"x0.065" 6063-T6 Pan
  2.75"x6"x0.078" 6063-T6 Pan
  2.75"x6"x0.078" 6063-T6 Cap & Pan
  4.5"x6"x0.078" 6063-T6 Cap & Pan
  6"x6"x0.078" 6063-T6 Cap & Pan

  Cantilever Beam Capacity
  Cantilever Beam   Unity(m) Unity(def)









  Soffit Purlin Capacity
  Soffit Purlin   Fb(l) Unity(m) Unity(def)
    23.3
  32.9
    32.9
    32.9
    32.9
    32.9
  15.8


  Reactions to Host Structure
  Reactions to Host Structure Rx
  Gravity (kip)
  Uplift (kip)
  Moment (kip-ft)


Awaiting product image
