DIVERSITECH CONCRETE PADS FOR KOHLER GENERATORS
DIVERSITECH CONCRETE PADS FOR KOHLER GENERATORS

DiversiTech: Concrete Pads for Kohler Generators

$30.00 or ( 3 Tokens )

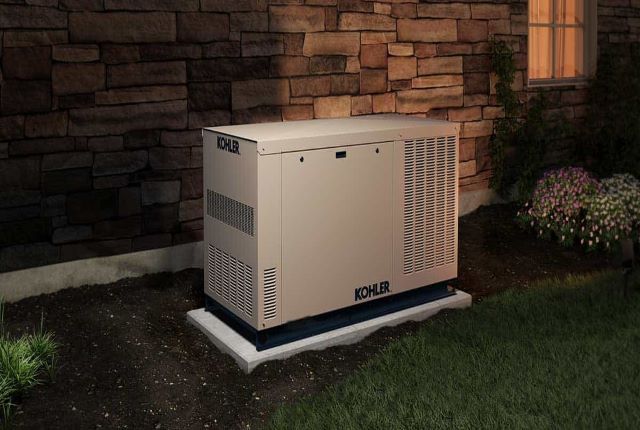

This certification applies to the DiversiTech GenPad™ Precast Concrete Pad for Kohler Generator Pads and is available as a drawing detail with a chart listing approved sizes and wind pressure loads. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above. Upon ordering, it will be signed and sealed by a Professional Engineer of the firm. Use it with your other approved documents to obtain a building permit.

This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes. Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #20-26886K)

Be sure to compare the allowable wind pressure capacities listed in the drawing to those that apply to your project site.

Please note: These plans are not certified for Miami Dade County. Fill out a Quote Request for a site-specific solution.

This is the table for Kohler pads:

GENERATORS Capacity MODEL DIMENSIONS (IN) MIN. WEIGHT (LBS)
WIDTH  LENGTH HEIGHT
1 2 3 4
KOHLER 8 RESV 28 31 32 347
KOHLER 10 RESV 28 31 32 382
KOHLER 12 RESV 28 31 32 397
KOHLER 14 RESC 25 48 29 370
KOHLER 20 RESC 25 48 29 485
KOHLER 14 RCA 26 47 32 390
KOHLER 20 RCA 26 47 32 505







Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently.

View Sample

Product Documents

Sample Documents

Product Documents

Sample Documents

Weight 0.16 lbs
Dimensions 0.0100 × 11 × 17 in
Equipment Manufacturer

Kohler
Material

Concrete
Plan Type

Master Plan Sheet – MPS
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
