Allied Air: Ducane Split System Units Technical Evaluation Report 2023 Update
Allied Air: Ducane Split System Units Technical Evaluation Report 2023 Update

Allied Air: Ducane Split System Units Technical Evaluation

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

 This document is sold as an engineer-certified report for permitting Allied Air: Ducane Split System Units Technical Evaluation meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #20-32208)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Unit Model Unit Dimensions (in) Unit Model Unit Dimensions (in)
Width Depth Height Width Depth Height
4AC16LT24* 26.75 24.75 29.75 4AC17L47* 32.25 32.25 33.25
4H P16LT24* 26.75 24.75 33.75 4AC17L48* 28.25 28.25 43.25
4AC16LT36* 31.25 29.38 29.75 4AC17L59* 32.25 32.25 43.25
4H P16LT36* 31.25 29.38 37.75 4AC17L60* 32.25 32.25 43.25
4AC16LT48* 31.25 29.38 37.75 4HP14B18P* 28.25 28.25 43.25
4AC16LT60* 31.25 29.38 43.75 4HP14B24P* 28.25 28.25 43.25
4H P16LT48* 37.75 35.75 37.75 4HP14B30P* 28.25 28.25 43.25
4H P16LT60* 37.75 35.75 43.75 4HP14B36P* 28.25 28.25 37.25
4H P18V36* 31.25 29.38 33.75 4HP14B42P* 32.25 32.25 37.25
4H P18V60* 31.25 29.38 43.75 4HP14B48P* 32.25 32.25 37.25
4AC14B18P* 24.25 24.25 29.25 4HP14B60P* 32.25 32.25 43.25
4AC14B24P* 28.25 28.25 29.25 4HP15L18P* 28.25 28.25 43.25
4AC14B30P* 28.25 28.25 37.25 4H P15L24P* 28.25 28.25 43.25
4AC14B36P* 28.25 28.25 29.25 4H P15L30P* 28.25 28.25 43.25
4AC14B42P* 28.25 28.25 37.25 4H P15L36P* 28.25 28.25 37.25
4AC14B48P* 28.25 28.25 37.25 4HP15L42P* 32.25 32.25 37.25
4AC14B60P* 32.25 32.25 43.25 4HP15L48P* 32.25 32.25 37.25
4AC16L18P* 24.25 24.25 29.25 4HP15L60P* 32.25 32.25 43.25
4AC16L24P* 28.25 28.25 29.25 4HP16L18P* 28.25 28.25 43.25
4AC16L30P* 28.25 28.25 37.25 4HP16L24P* 28.25 28.25 33.25
4AC16L36P* 28.25 28.25 29.25 4HP16L30P* 28.25 28.25 33.25
4AC16L41P* 28.25 28.25 37.25 4HP16L36P* 32.25 32.25 33.25
4AC16L42P* 28.25 28.25 37.25 4HP16L42P* 32.25 32.25 43.25
4AC16L47P* 32.25 32.25 33.25 4HP16L48P* 32.25 32.25 43.25
4AC16L48P* 28.25 28.25 37.25 4HP16L60P* 32.25 32.25 43.25
4AC16L59P* 32.25 32.25 43.25 4HP17L18P* 28.25 28.25 43.25
4AC16L60P* 32.25 32.25 43.25 4HP17L24P* 28.25 28.25 43.25
4AC17L18* 28.25 28.25 29.25 4HP17L30P* 28.25 28.25 33.25
4AC17L24* 28.25 28.25 37.25 4HP17L36P* 32.25 32.25 33.25
4AC17L30* 28.25 28.25 29.25 4HP17L42P* 32.25 32.25 37.25
4AC17L36* 28.25 28.25 37.25 4HP17L48P* 32.25 32.25 37.25
4AC17L41* 32.25 32.25 33.25 4HP17L60P* 32.25 32.25 43.25
4AC17L42* 32.25 32.25 33.25

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

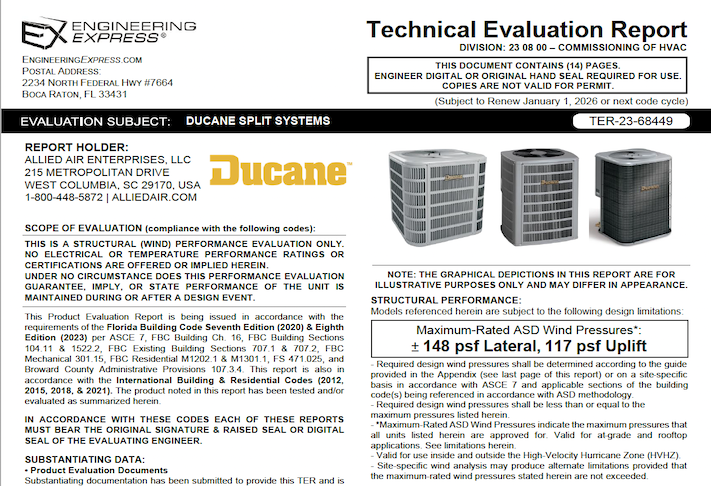

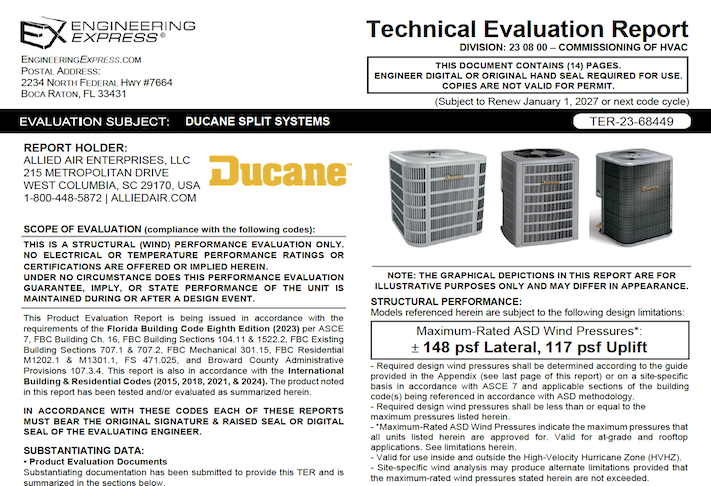

View Sample

Weight 1.0 lbs
Dimensions 11 × 8.5 × 0.25 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy
Brand

Allied, Ducane
Plan Designer

Engineering Express
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Storefront

Allied, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
